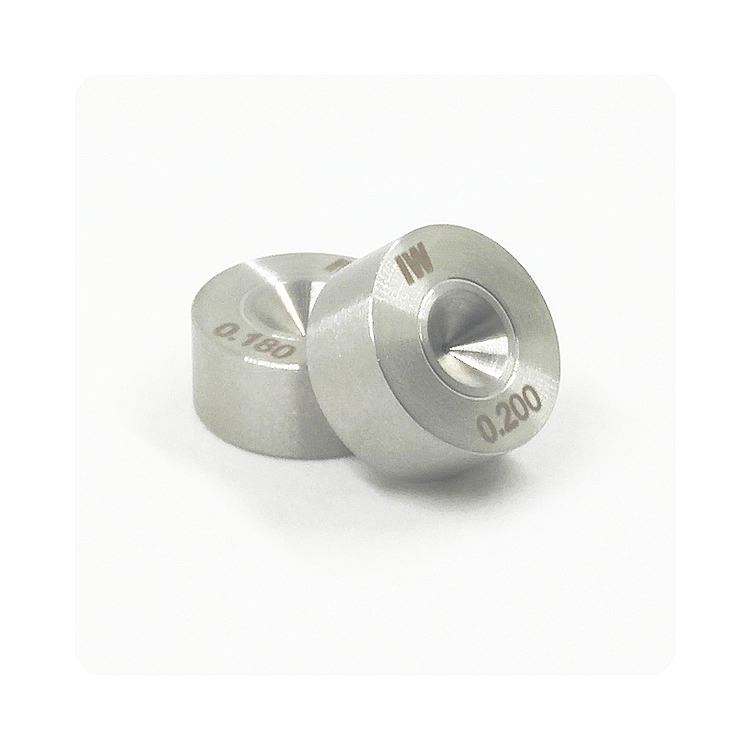

  Single Crystal Diamond Dies

  Synthetic Diamond Wire Drawing Dies


Synthetic Diamond dies (Mono Diamond Dies) are used for tube wires and wires, their durability,
hardness is the best choice for the special requests of die tools. IWD Synthetic diamond dies
(Mono Diamond Dies) are well widely used on special requests and the ways to solve critical cost
control with your productions lines.

Synthetic Diamond Wire Drawing Dies
IWD Synthetic diamond dies (Mono Diamond Dies) Hole Sizes:
From 0.0008inch to 0.0800inch
Or from 0.0200mm to 2.0000mm
IWD Synthetic diamond dies (Mono Diamond Dies) Description:
Typical Reduction Angles And Bearing Length


  Natural Diamond Drawing Dies


Natural Diamond guarantees wire die hardness, superior finish and performance as hallmark of the
diamond. IWD Diamond Wire drawing dies are manufactured with ND stones produce drawn wire
with superior surface conditions and the ability to maintain very high polishing surface and tight
diameter tolerances, for fine wire and ultrafine wire applications. IWD manufactures and supplies
a very full range of Natural Diamond Wire Drawing Dies.

Natural Diamond Drawing Dies
Natural Diamond Dies(ND dies) is a wire drawing tools for the production of soft wires such as
copper, aluminum wires and hard wires as stainless steel, tungsten , Ti-plated copper, etc..
Hole Sizes:
From 0.0004inch to 0.0800inch
Or from 0.0100mm to 2.0000mm
Natural Diamond Drawing Die Applications
Used in fine and ultrafine wire sizes, or as finishing dies when wire surface quality is critical.
Tungsten wire, plated-copper wire, stainless steel wire and precious metals.
Description:
Typical Reduction Angles And Bearing Length
Application Notices:
1. To avoid shocking the natural diamond dies (ND dies) as installing and fix the die case firmly
in the mold.
2. To use the proper percentage of lubrication for different reduction angle of natural diamond
drawing dies as wet drawing and keep 40-50 degree temperature during the processing.
3. To maintain and repair the ND dies as a matter of fact


  Tinned Plated Diamond Dies


The case material of IWD Tinned Plated Diamond Dies is different with the ordinary case material.
It must keep the weight of the whole case be light in order to keep the wire straight.

Tinned Plated Diamond Dies
IWD Tinned coated copper diamond dies
Applications:
1. For copper casing material tinned coated.
2. Special case material.
3. Standard case 25x8mm, 25x7mm
Description:
Typical Reduction Angles And Bearing Length

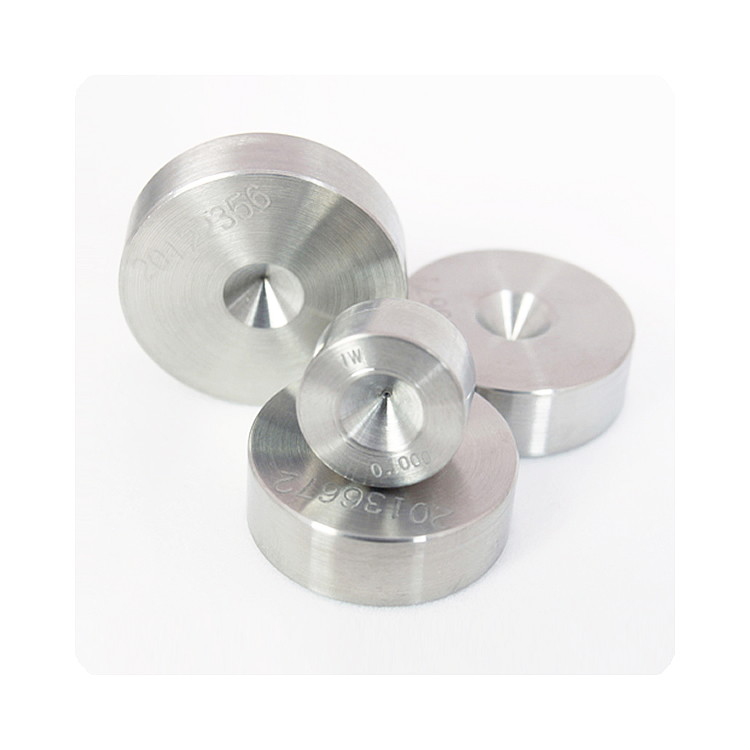

  Enamelled Wire Drawing Die


This kind of dies is the painting diamond wire die for the wire insulation, for a thin layer of enamel
on the wire surface. The result is an insulated wire with uniform insulation thickness and precise
conductor centering that provides the correct electrical characteristics in your finished product.

Enamelled Wire Drawing Die
IWD offers enamelling die with natural diamond core in:
0.020-0.600mm
Application:
Magnet wire, Enameled wire, Gold Bonding Wire.
If you have any special requests of enamelled diamond dies, please send us your inquiry to us by
sales@iwdiamond.com. We will response as soon as wen can.


Area Reduction
Per Draft
Lead Zinc Silver Gold Aluminum Nickel Copper Brass Bronze Stainless Steel High Carbon Steel Hot Tungsten
8-12% 16" 12" 11" 10" 10"
12-16% 18" 14" 13" 12" 12"
16-25% 22" 18" 16" 15" 12"
25-35% 24" 22" 19" 18" 14"
Set the length 0.2-0.5d 0.4-0.8d

Standard (inches)
Size Range Standard Tolerance Roundness
-0.0008 0.000028 0.000014
0.0008-0.0020 0.000039 0.00002
0.0020-0.0040 0.000039 0.00002
0.0040-0.0080 0.000059 0.00003
0.0080-0.0200 0.00008 0.00004
0.0200-0.0400 0.00012 0.00006
0.0400-0.0600 0.0002 0.0001
0.0600-0.0780 0.00028 0.00014
>0.0780 0.0004 0.0002

Standard (millimeters)
Size Range Standard Tolerance Roundness
-0.020 0.0007 0.00035
0.020-0.051 0.0010 0.0005
0.051-0.102 0.0010 0.0005
0.102-0.203 0.0015 0.00075
0.203-0.508 0.0020 0.0010
0.508-1.016 0.003 0.0015
1.016-1.524 0.0050 0.0025
1.524-1.981 0.007 0.0035
>1.981 0.010 0.005
